Velowave Brawny

$3,499.00

Category:

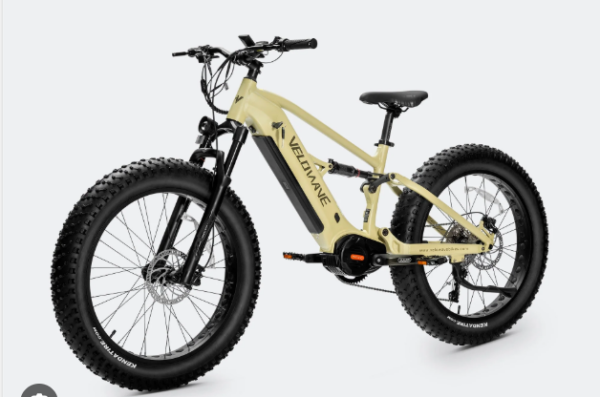

Modern electric bike with large wheels.

Product Description

General

  • Classes:
  • Class 3 (Ebikes can go up to 37mph with pedal assistance)
  • Max Speed:
  • Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
  • Range:
  • Up to 85 Miles* on PAS, 60 Miles* on Throttle ( Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)

Frameset

  • Frame:
  • 6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm
  • Fork:
  • Air Suspension Fork with 100mm travel, with lockout
  • Rear Suspension:
  • Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment

Wheels

  • Rim:
  • Aluminum 26″ 36H Front & Rear
  • Front Wheel Spokes:
  • Black Stainless 13G x 255/257 mm, Front and Rear
  • Hubs:
  • Disc Nutted Front / Rear Axles
  • Tire:
  • Kenda 26″ x 4.8″ Fat Tires
  • Tire Size:
  • 26″ x 4.8″

E-system

  • Battery:
  • Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
  • Charger:
  • 48V 3 Amp Charger, Approx. 7 Hour Charging
  • Motor:
  • 1000W （Peak 1200W），160Nm
  • Display:
  • TFT Smart Easy Read Display with Backlight, Colorful screen
  • Pedal Assist:
  • 6 Levels
  • Sensor:
  • Torque Sensor
  • Throttle:
  • Throttle on demand – Throttle from a complete stop
  • Light:
  • Front 48V LED Light 80 LUX; Rear Blinking Light

Drivetrain

  • Shifter:
  • Shimano 10-Speed Thumb Shift
  • Pedal Assist:
  • 6 Levels
  • Crankset:
  • 170mm w/ 48 T
  • Freewheel:
  • Shimano 11-42T, 10-Speed CASSETTE
  • Pedals:
  • Alloy Platform
  • Chain:
  • KMC 134 Link, 10-Speed
  • Rear Derailleur:
  • Shimano Deore RD-M4120 10-Speed

Components

  • Saddle:
  • Comfortable Wide Saddle
  • Seatpost:
  • Forged Alloy, φ31.6x300mm
  • Seat Clamp:
  • φ38.1mm Quick Release
  • Stem:
  • Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
  • Handlebar:
  • Aluminum Ø31.8mm, Width 740mm
  • Headset:
  • Sealed Bearing Headset
  • Grips:
  • Ergonomic Comfort
  • Brakes:
  • Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
  • Kickstand:
  • Included, Rear Mount
  • Fenders:
  • Not Included
  • Rear Rack:
  • Not Included

Weight

  • Net Weight:
  • 82 lbs / 37.2 kg (including battery)
  • Gross Weight:
  • 111 lbs / 50.5 kg
  • Battery Weight:
  • 11.4 lbs / 5.15 kg
  • Max Load Capacity:
  • 385 lbs / 175 kg (including cargo)

Size

  • Product Size:
  • 2100 x 1158 x 745 mm
  • Packing Size:
  • 1700 x 350 x 900 mm
