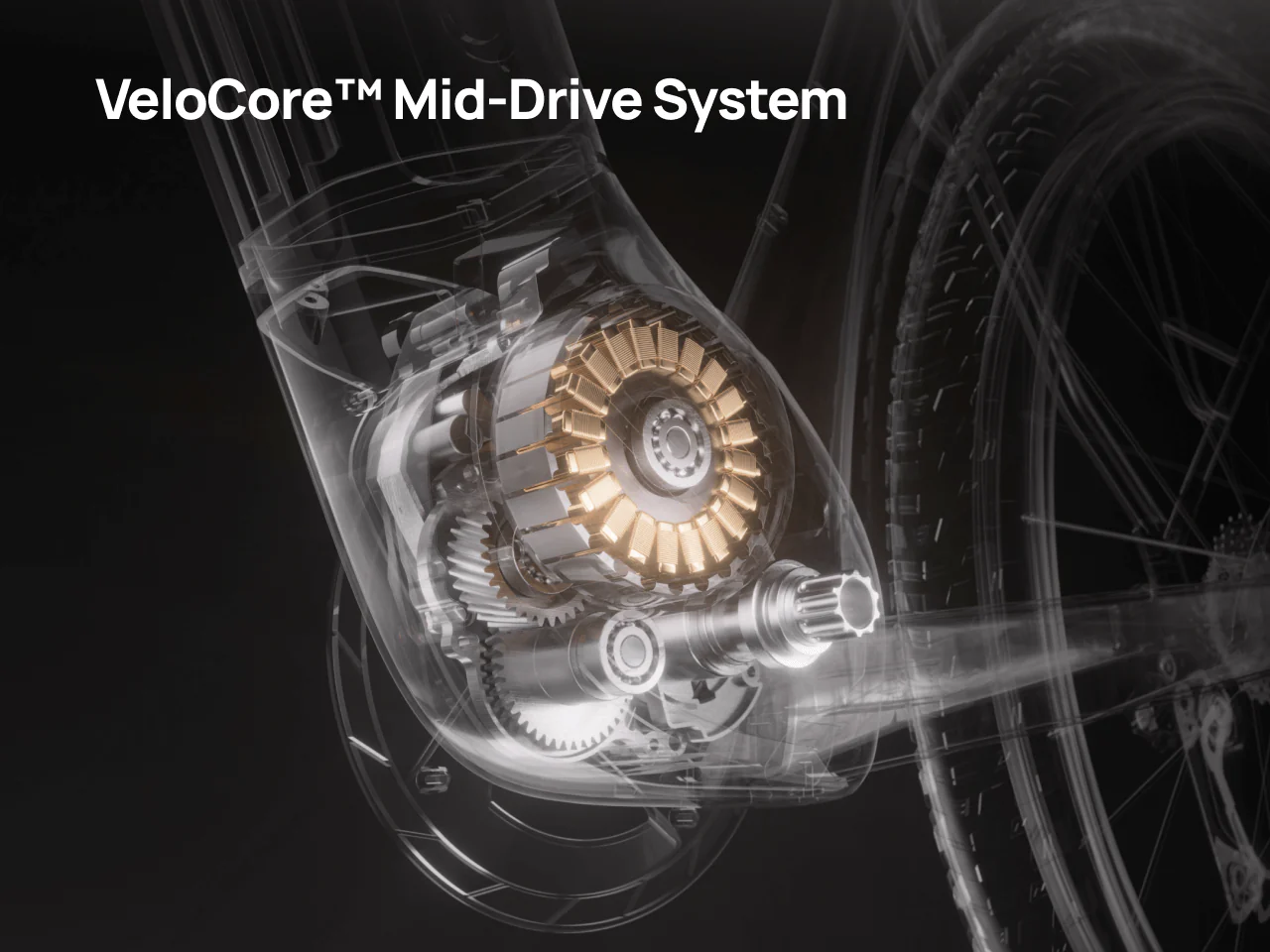

Mid-Drive Commuter Ebike Powered by VeloCore™ System

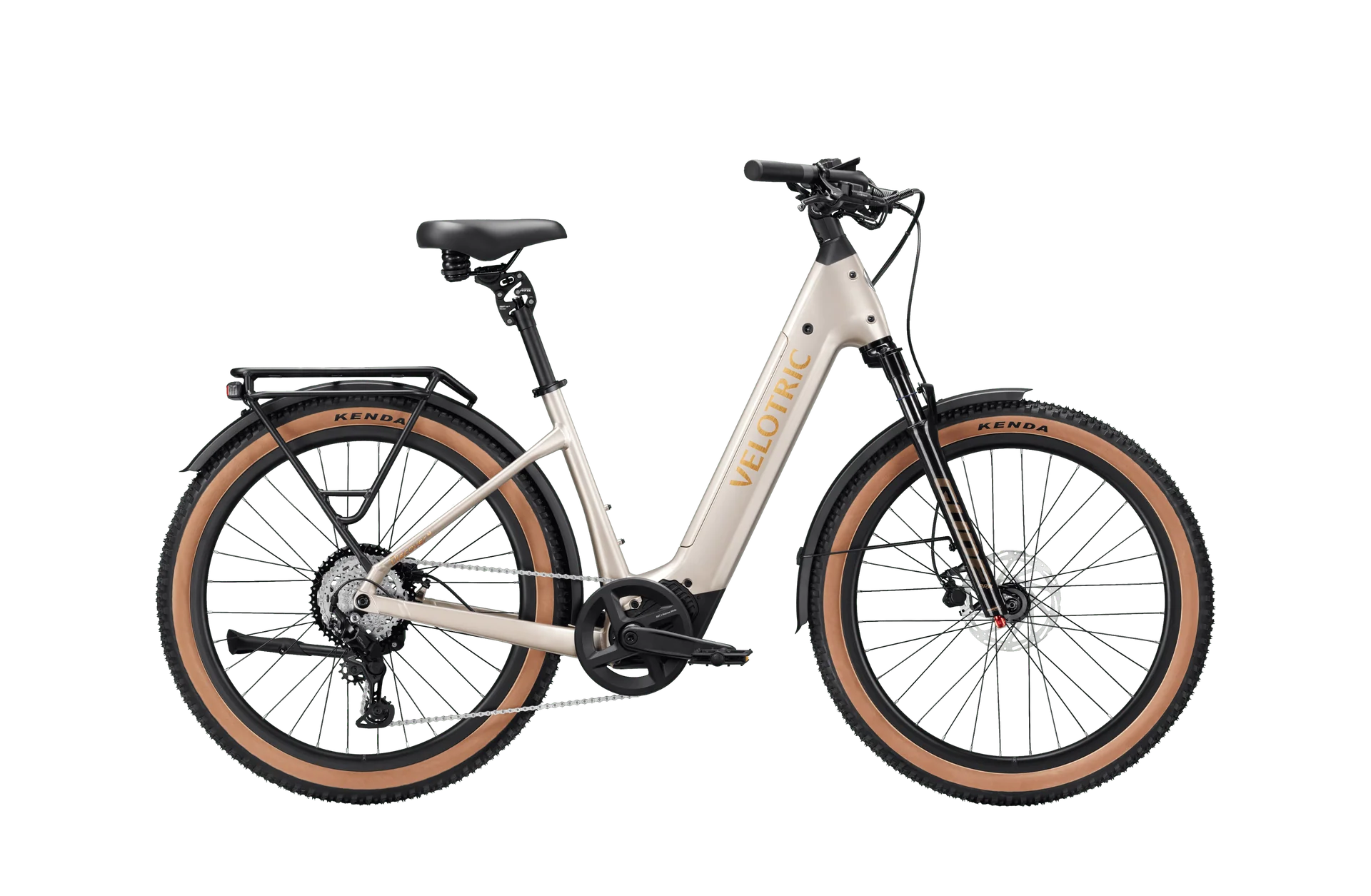

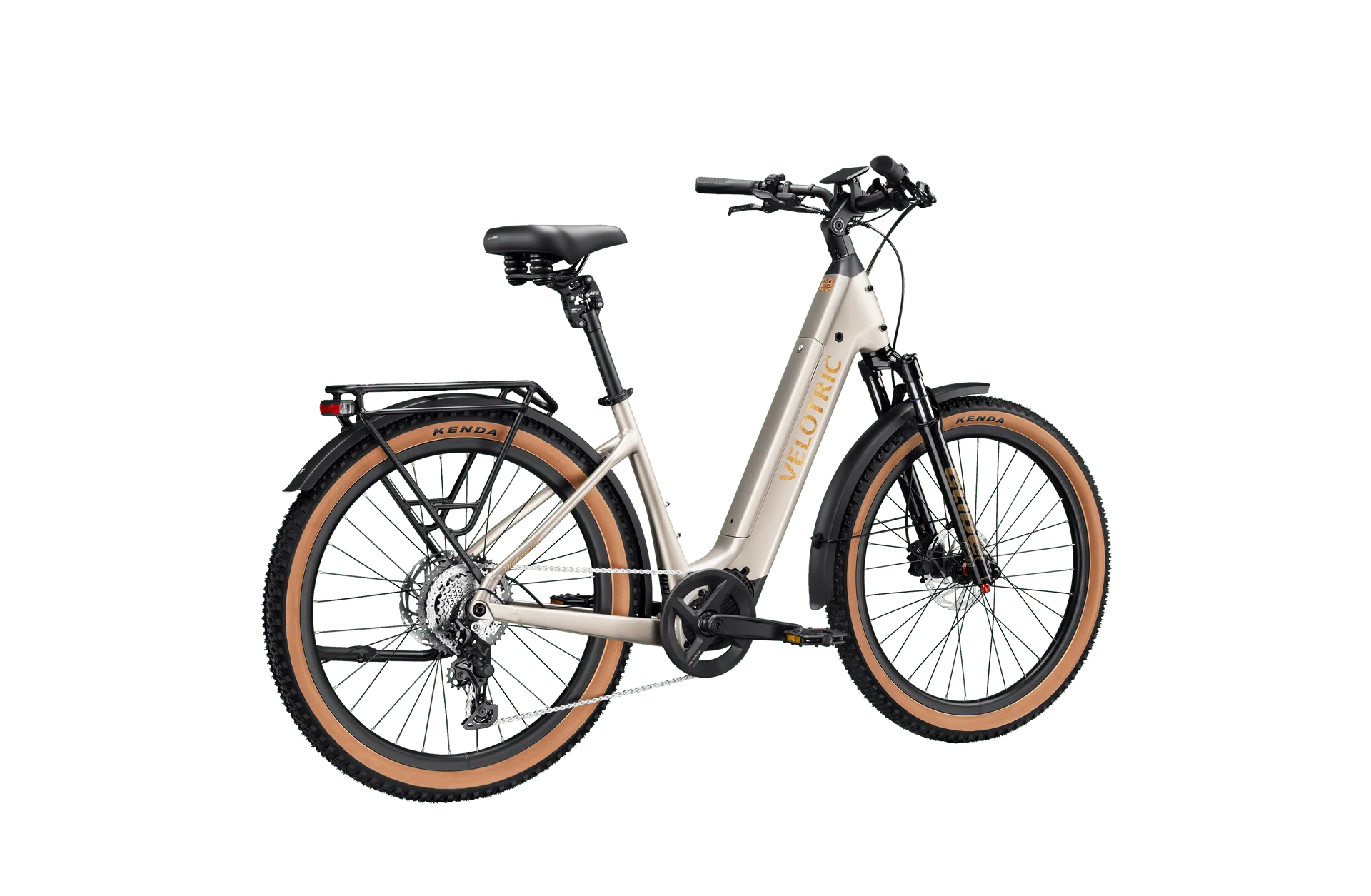

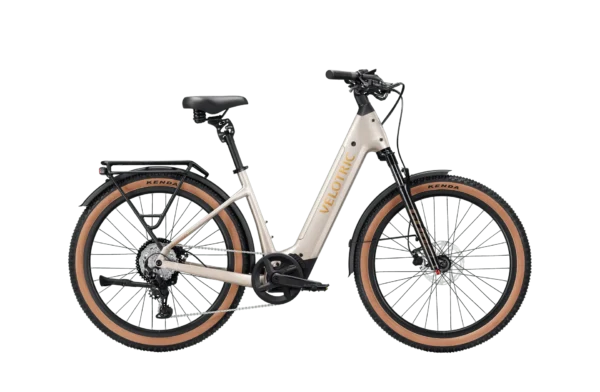

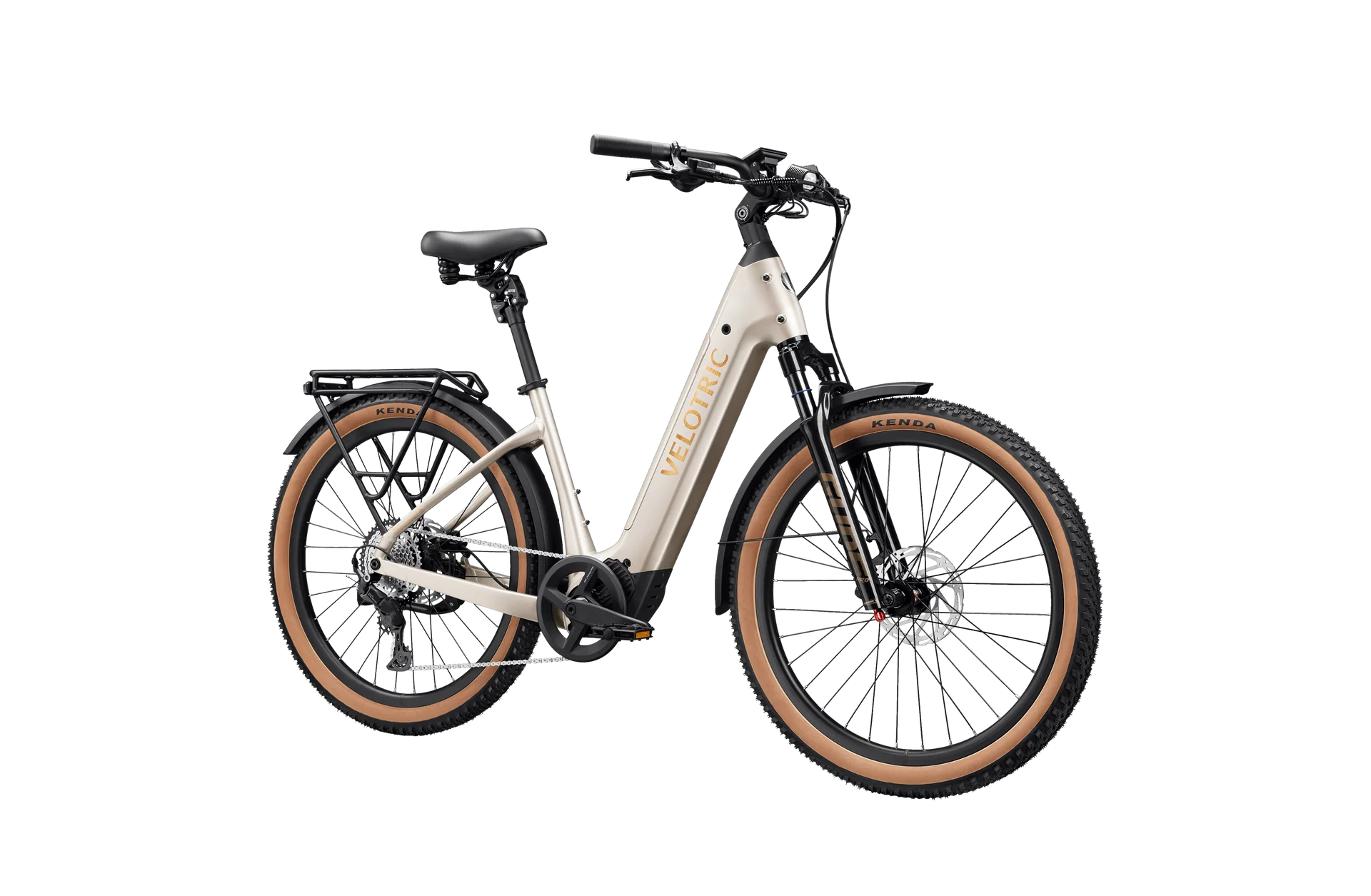

Velotric Discover M Ebike

Description

Max Range 95 Miles

Top Speed 28 MPH

SensorSwap™ Torque/Cadence

Battery 801.6 Wh

Motor 500W/100Nm

Pedal Assist Mode 5 Modes

Specifications

Size Guide

Bike Size
Regular / Large

User Height Range
R：5’2”~5’11” L：5’9”~6’7”
（With Suspension Seatpost）
R：4’11”~5’9” L：5’6”~6’4”
（Without Suspension Seatpost）

Frameset

Frame
Triple-Butted Aluminum Alloy

Fork
Air suspension 80mm Travel with Lock-out

Electronics

Motor
48V, 500W, 960W(Peak Power) ,100Nm

Battery
48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL 2271

Cell
Samsung/LG 21700 cell, Certificated by UL2580

Charger
48V, 3A Fast Charger

Sensor
Torque and Cadence Sensor

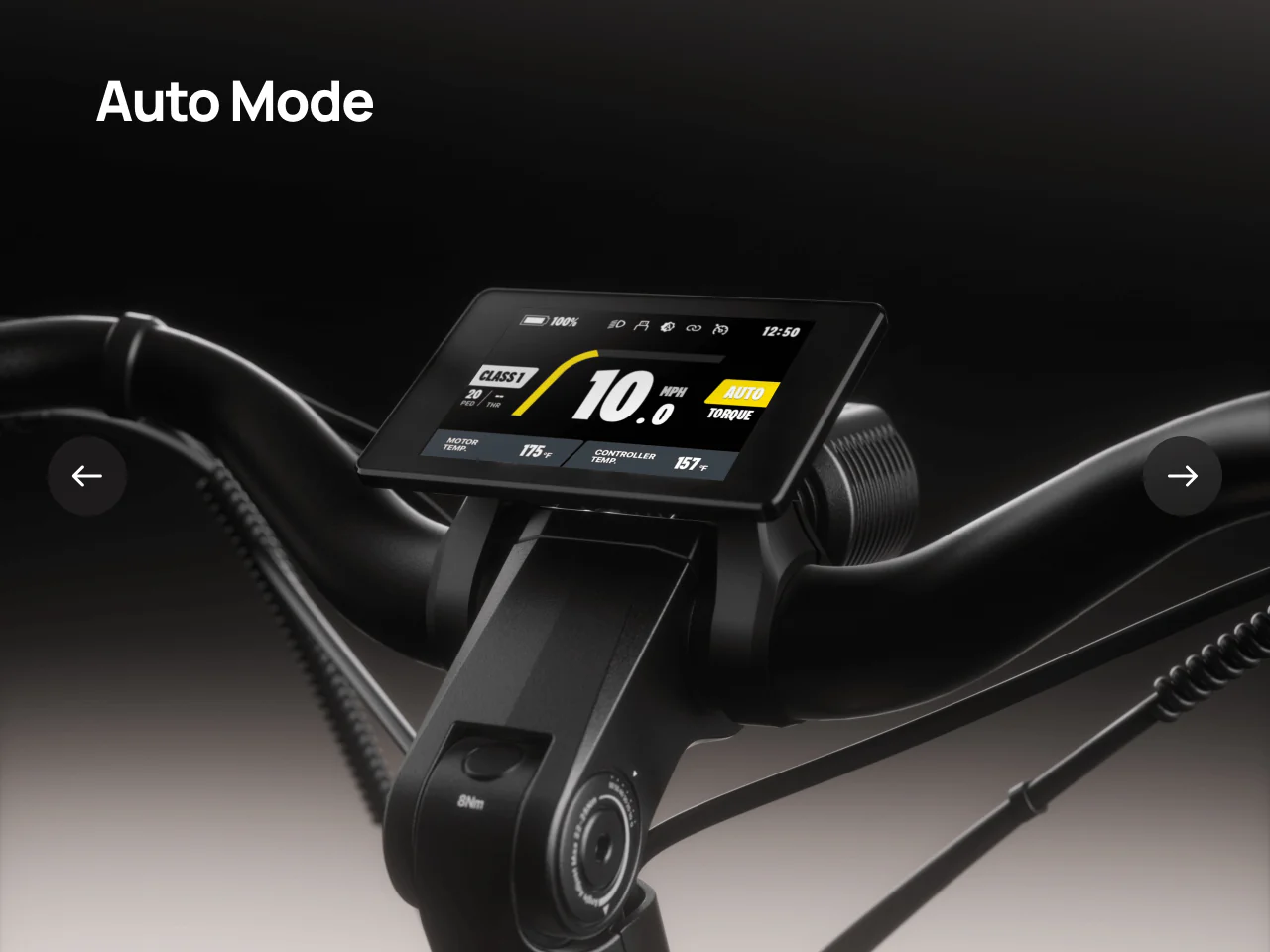

Display
3.5″ Full color, High brightness, Bluetooth, NFC, Adjustable Angle

USB Port
USB Type-C phone Charge

Throttle
Trigger-control, Removable

Pedal Assist
4 Riding Modes +Auto Mode/Ride Tuning

Walk Mode
2.9MPH/ Walk & Hold

Front Light
500LM High-output Integrated LED, Adjustable Angle

Rear Light
Braking Indicator, Turn Signal, Rear Light Steady/Flash, Integrated with Rear Rack

Water Resistant
IPX6

App
App OTA

Anti-theft
Apple Find My & Android Find Hub，NFC Card Unlock

Speed & Range

Max Speed (Default）
20MPH

Max Speed Adjustable Range
12~28MPH

Ebike Class
1/2/3

Pedal Assist Range
95 Miles

Throttle Range
70 Miles

Drivetrain

Chainrings
46T Narrow-Wide Chainring

Crankset
Aluminum Alloy, 170mm

Cassette
9-speed,11-46T

Rear Derailleur
SHIMANO Cues, 9-speed

Shift Lever
SHIMANO Cues, 9-speed

Chain
KMC eGlide 9-speed

Brake

Brake
Tektro Hydraulic Disc Brake

Rotors
180mm Front/180mm Rear

Brake Levers
Aluminum Alloy, with Power Cutoff

Wheel

Rims
Aluminum Alloy

Front Hub
NOVATEC Aluminum Alloy, 15x110mm Thru-axle

Tire

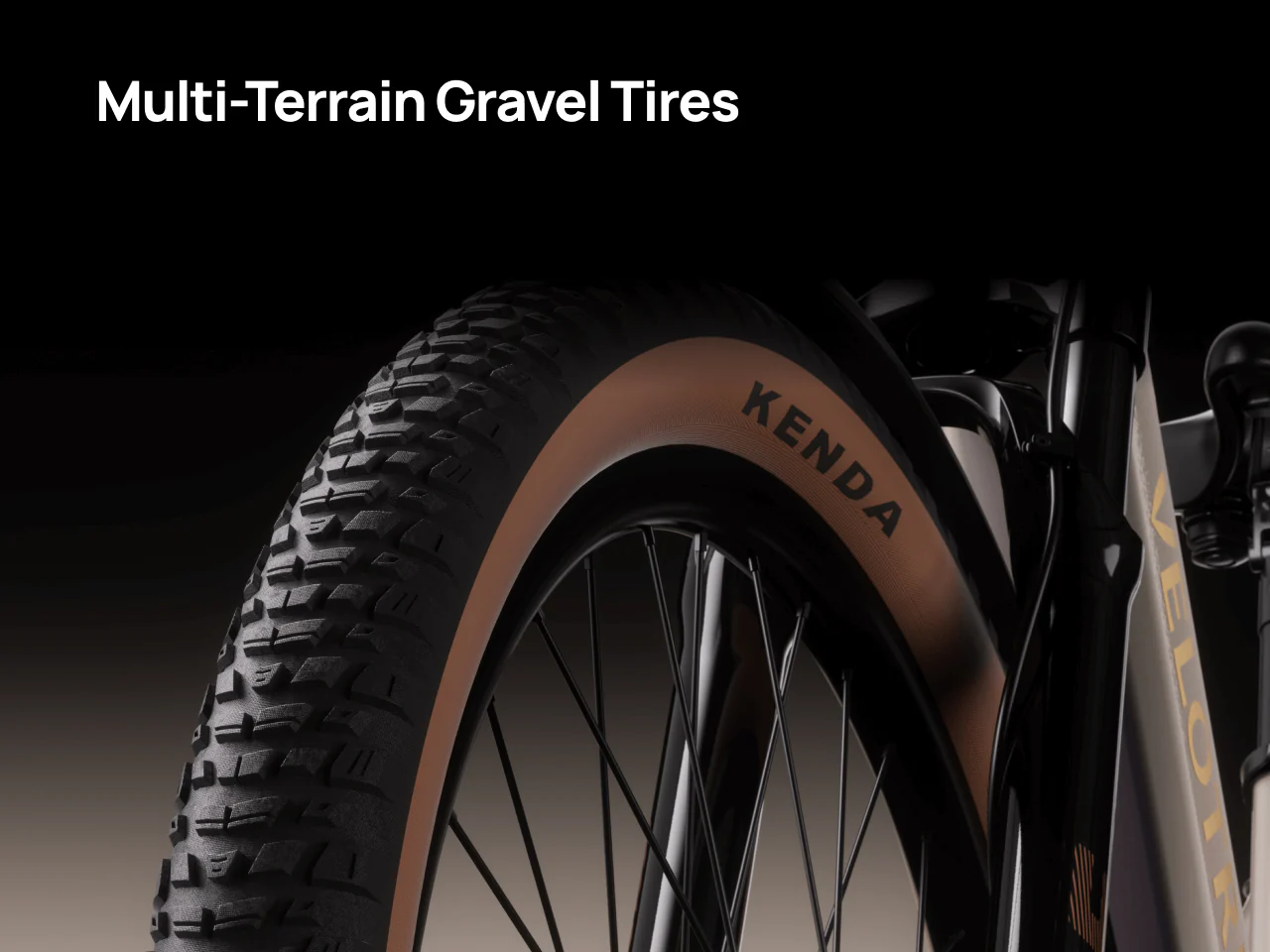

KENDA 27.5×2.4″ eBike Puncture Resistant Tires

Cockpit

Handlebar
Aluminum Alloy, Ф31.8mm, 680mm(R)/700mm(L)

Grips
Durable Ergonomic Grips, Lockable

Stem
Adjustable, Aluminum Alloy, ф31.8mm, 60mm Length

Saddle
VELOTRIC Comfort Ergonomic Seat

Seatpost
Aluminum Alloy, Ф30.9mm, Suspension

Clamp
Aluminum Alloy, Quick Release

Supports

Fenders
Aluminum Alloy, Front and Rear Full Coverage

Rear Rack
MIK HD Compatible Alloy

Pedals
Plastic

Kickstand
Aluminum Alloy, Included, Rear Mount

Weight & Load

Bike Weight
60 lbs
*Weight does not include fenders, kickstands, or pedals.

Rear Rack Load Capacity
66 lbs

Max Bike Load Capacity
440 lbs

Certification

UL Certification
UL2849 & UL2271

ISO Standard
ISO 4210

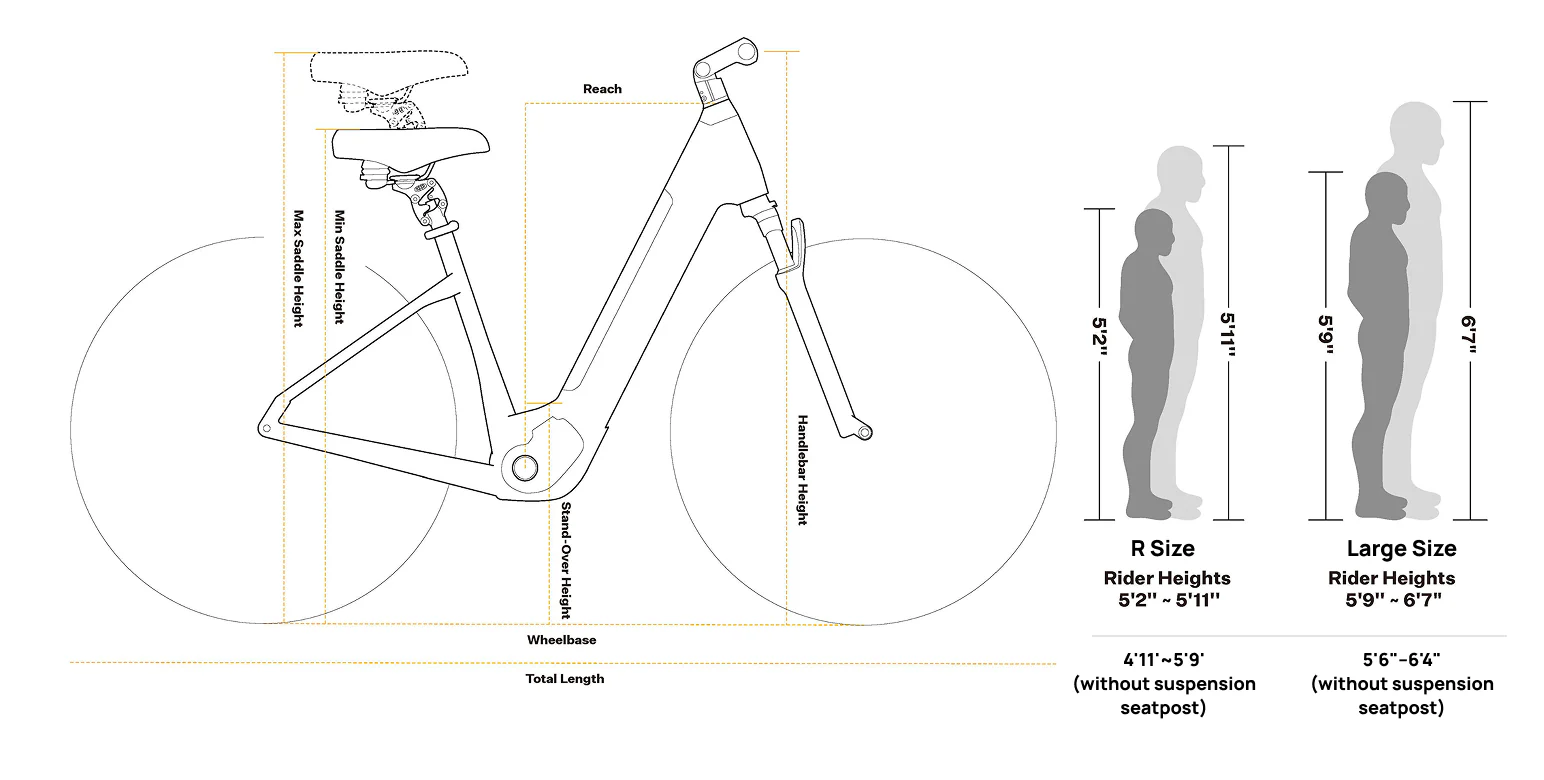

Geometry

Regular

Height	5’2″ ~ 5’11”
Reach	374mm
Handlebar Height	1110mm
Wheelbase	1113mm
Stand-Over Height	399mm
Min Saddle Height	838mm
Max Saddle Height	995mm
Total Length	1812mm

Large

Height	5’9″ ~ 6’7″
Reach	374mm
Handlebar Height	1110mm
Wheelbase	1113mm
Stand-Over Height	388mm
Min Saddle Height	910mm
Max Saddle Height	1065mm
Total Length	1812mm
