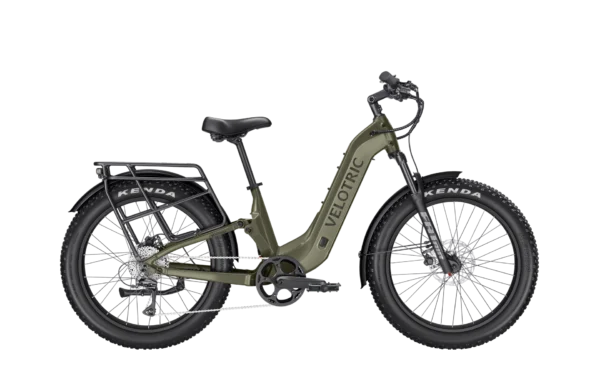

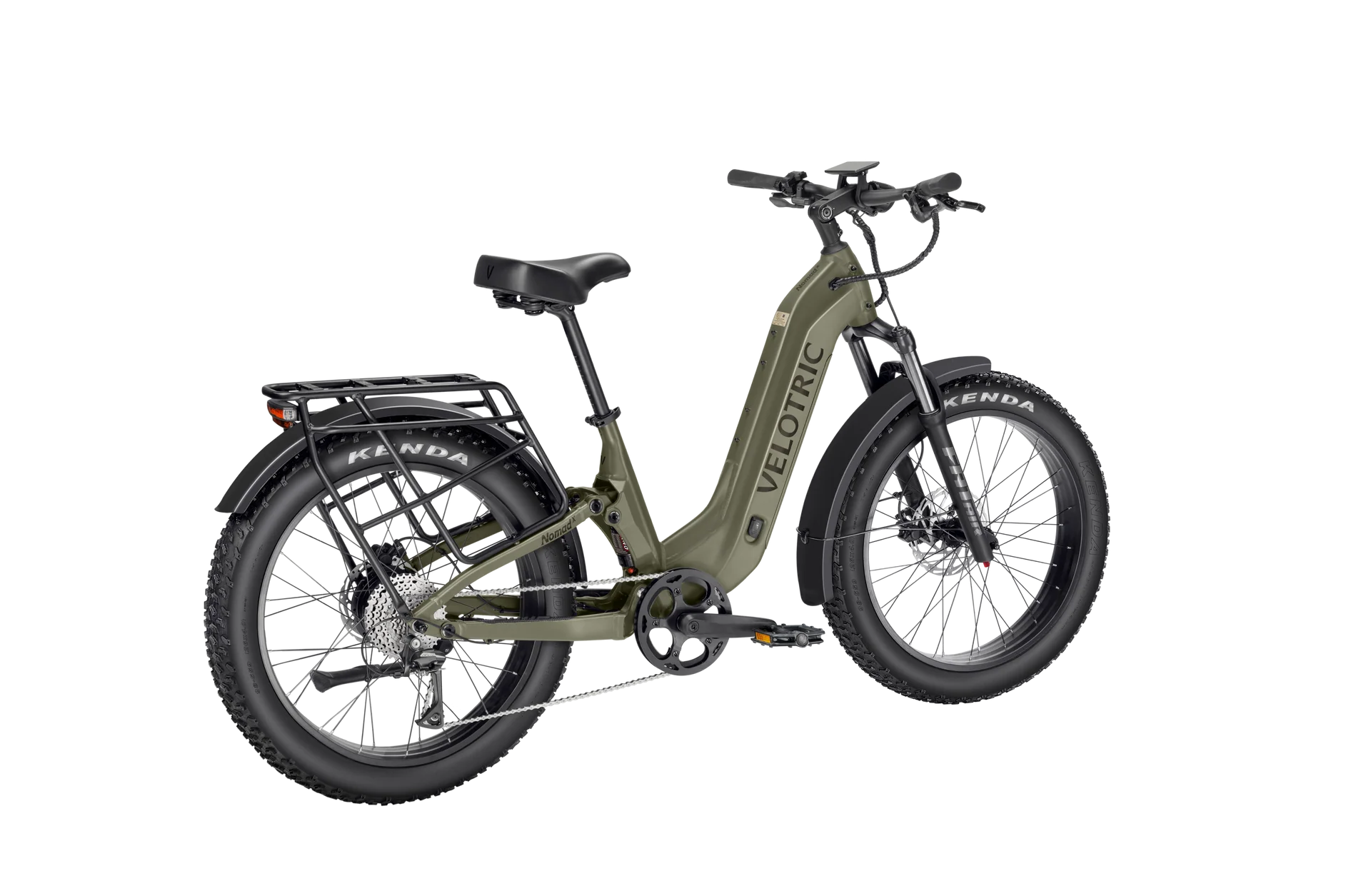

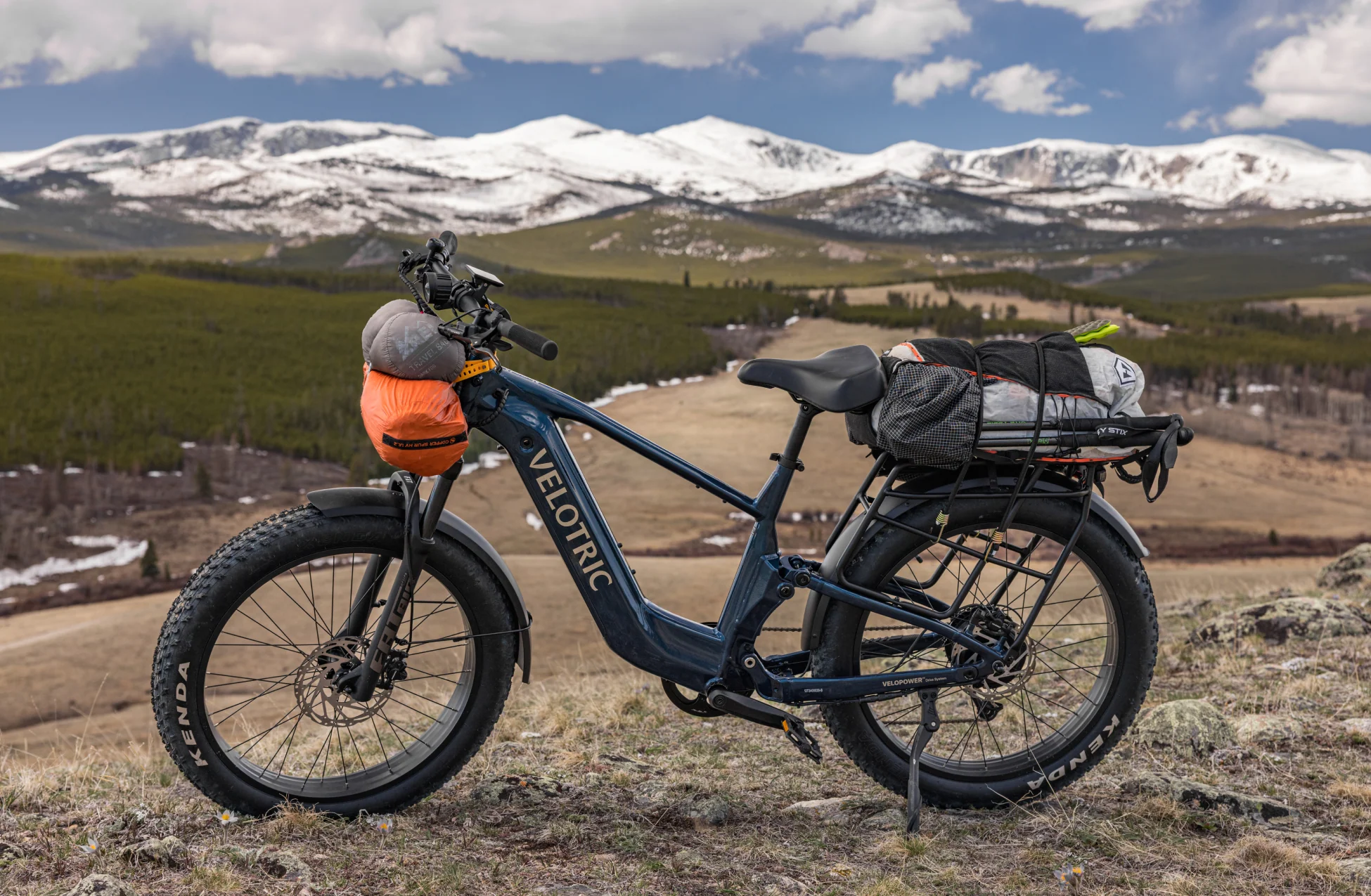

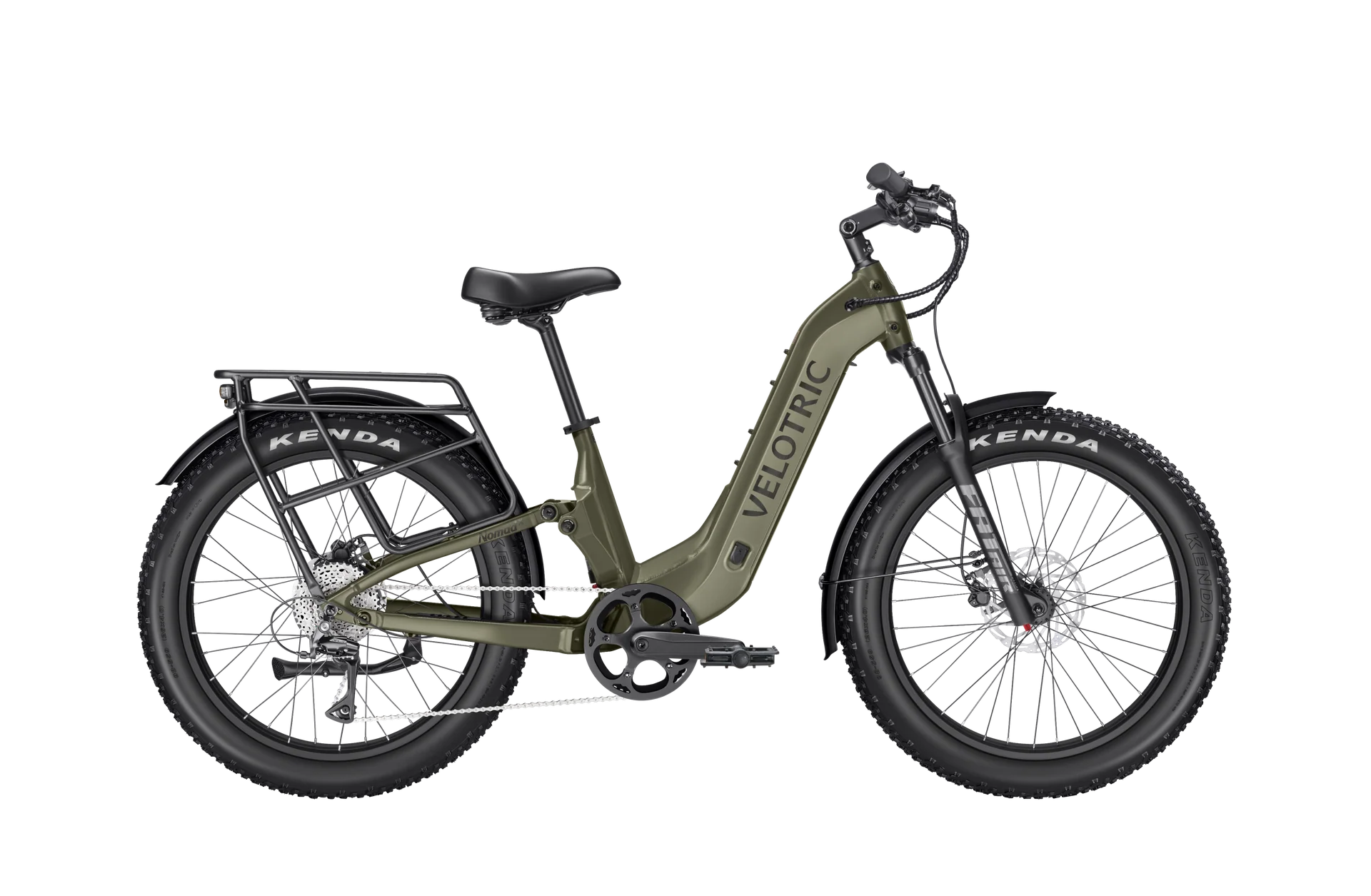

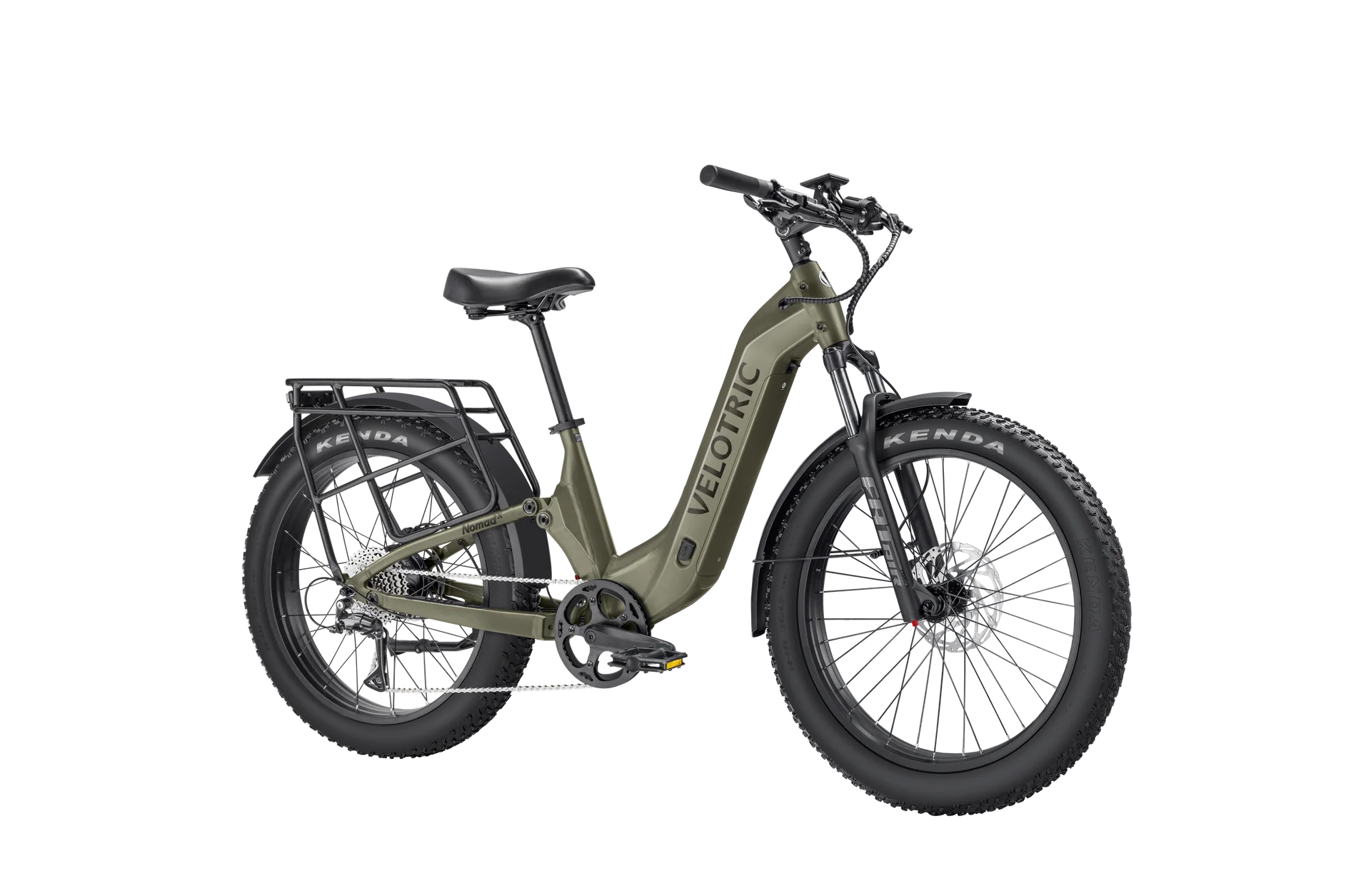

Full Air Suspension for All-Terrains Velotric Nomad 2X Full Suspension Fat Tire Ebike

Description

Max Range 75 Miles

Motor Power 750W/105Nm (1400W Peak)

Front Suspension 120mm Air Fork

Max Payload 560 Lbs

SensorSwap™ Torque/Cadence

Rear Suspension 80mm Wheel Travel Air Suspension

---

1,200+ dealer shops
Reliable and Trusted
UL-Certified
UL2271/UL2849 Certification
Waterproof
IPX7 Battery, IPX6 Frame

Specification & Geometry

Specification

Size Guide
Bike Size: Step-Thru / High-Step
User Height Range : Step-Thru: 4’11” – 5’10” High-Step: 5’10” – 6’5”

Frameset
Frame: Triple-Butted Aluminum Alloy, Rear Wheel 80mm Travel
Fork: Air suspension 120mm travel with Lock-out, Nutted, Rebound adjustable
Rear Shock: DNM Air suspension, 165mm x 38mm Travel

Electronics
Motor Hub: 48V, 750W, 105Nm
Battery: 48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL 2271
Cell: Samsung/LG 21700 cell, Certificated by UL 2580
Charger: 48V, 3.0A Fast Charger
Display: 3.5″ Full color, High brightness, Bluetooth, Adjustable angle
Sensor: Torque and Cadence Sensor
USB Port: USB Type-C phone charge
Throttle Assist: Trigger-control, removable
Pedal Assist: 3 Riding Modes x 5 PAS Levels
Walk Mode: 2.9 MPH
Front Light: Light sensing 130 Lux /500 LM high-output integrated LED, adjustable angle
Rear Light: Braking Indicator, turn signal, rear light steady/flash, integrated with rear rack
App & Apple Find My™: APP OTA & Find My

Speed & Range
*A 187-lb rider using PAS 1 in Eco mode on flat roads.
Max Speed (Default): 20 MPH
Max Speed Adjustable Range: 12~28 MPH
Class: 1/2/3
Throttle Range: 50 Miles
Pedal Assist Range: 75 Miles

Drivetrain
Chainrings: 48T
Crankset: Aluminum Alloy, 170mm
Freewheel: 8-speed, 11-40T
Chain: 8-speed
Rear Derailleur: SHIMANO 8-speed
Shift Lever: SHIMANO 8-speed

Brake
Brake: Tektro Hydraulic Disc Brake
Rotors: 203mm Front / 180mm Rear
Brake Levers: Aluminum Alloy, with power cutoff

Wheel
Rims: Aluminum alloy
Front Hub: Aluminum alloy, nutted
Tire: KENDA 26×4.0″ eBike puncture-resistant tires

Cockpit
Handlebar: Aluminum Alloy, Φ31.8mm, 700mm
Grips: Durable ergonomic grips, lockable
Stem: Adjustable, Aluminum Alloy, Φ31.8mm, 60mm(ST)/90mm(HS)
Saddle: VELOTRIC comfort ergonomic seat
Seatpost: Aluminum Alloy, Φ30.9mm
Clamp: Aluminum Alloy, quick release

Supports
Fenders: Front and rear full coverage
Rear Rack: MIK HD Compatible Alloy
Pedals: Plastic
Kickstand: Aluminum Alloy, included, rear mount

Weight & Load
Bike Weight: 80lbs
Max Bike Load: 560lbs
Rear Rack Load Capacity: 120lbs

Certification
UL Certification: UL 2849
ISO Standard: ISO 4210

Geometry

Step-Thru

High-Step

Height	5’10” – 6’5”
Reach	460mm
Handlebar Height	1080mm
Wheelbase	1315mm
Stand-Over Height	780mm
Min Saddle Height	860mm
Max Saddle Height	1330mm
Total Length	2085mm
