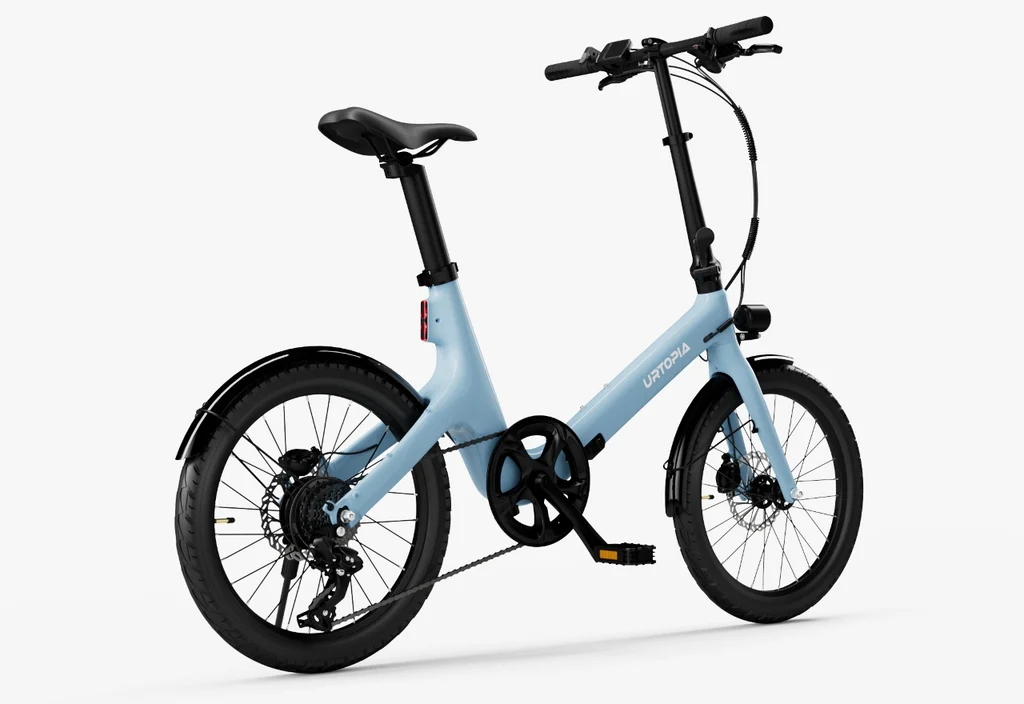

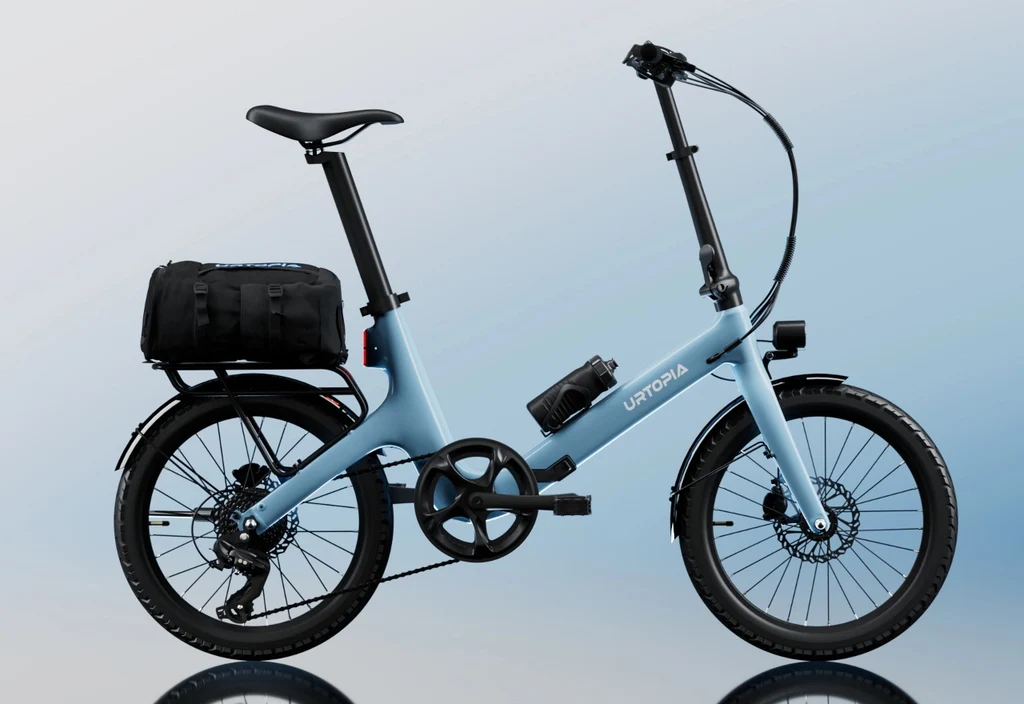

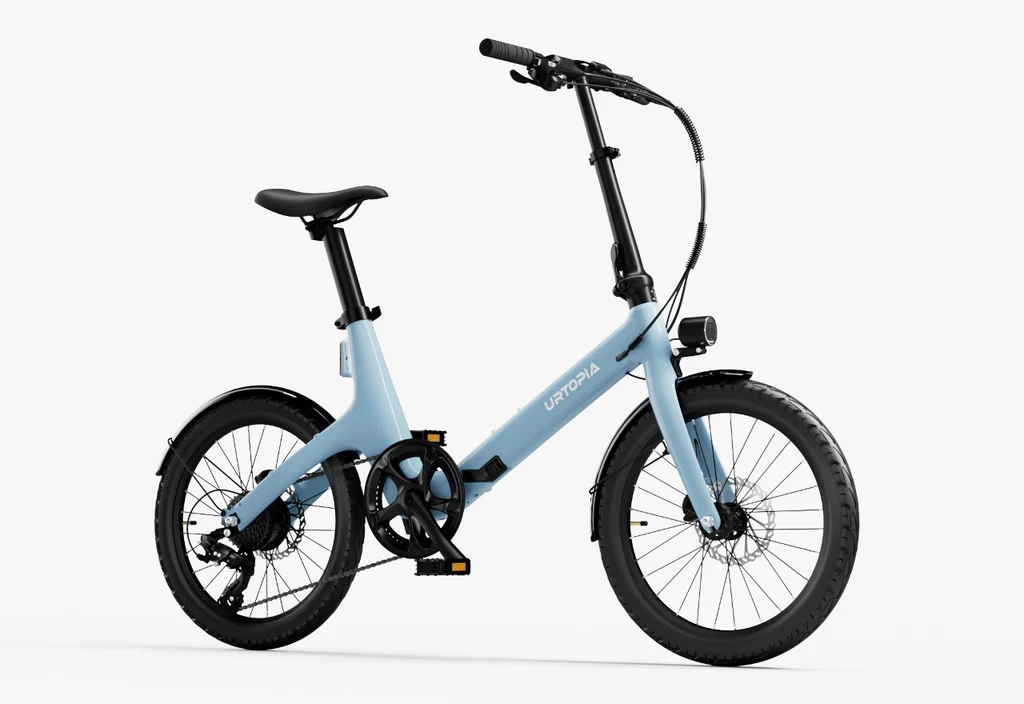

Urtopia Carbon Fold Step-Thru E-Bike

Description

Toray® Carbon Fiber
31 lbs Lightweight

All-day Range
Up to 50 miles

Space-efficient
20% more compact

Torque Sensor
0 Response Latency

Colorful Display
LCD Screen

Safety Certified
UL 2849

---

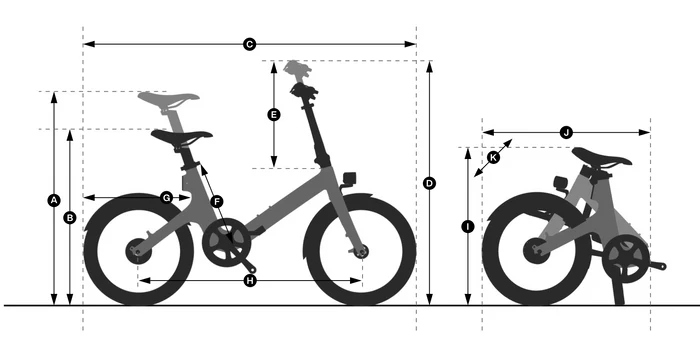

Size Guide

Recomm. rider height	4’11’’ – 6’5’’
A. Max Seat Height	1090 mm (43’’)
B. Min Seat Height	800 mm (31’’)
C. Overall length	1540 mm (61’’)
D. Handlebar grips height	1100 mm (43’’)
E. Headset height	440-310 mm (17’’-12’’)
F. Seat tube length	410 mm (16’’)
G. Wheel diameter	510 mm (20’’)
H. Wheelbase	1025 mm (40’’)
I. Height after folding	720 mm (28’’)
J. Overall length after folding	810 mm (32’’)
K. Width after folding	480 mm (19’’)

Specs

General Info

Model
Carbon Folding Step-Thru E-Bike

Net Weight
31 lbs w/o acc.

Material
Carbon fiber (frame, fork)

Range
Up to 50 miles
The 50-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.

Top Speed
20 mph

Total Weight Limit
220 lbs

Rider Height
4’11’’ – 6’5’’

Brakes
TEKTRO hydraulic disc brake

Wheels
Kenda 20’’ x 1.95’’

Ebike System

Class
Class 2

Motor
250W (Peak Power 500W) rear hub, 42Nm

Throttle
Optional (up to 20 mph)

Battery

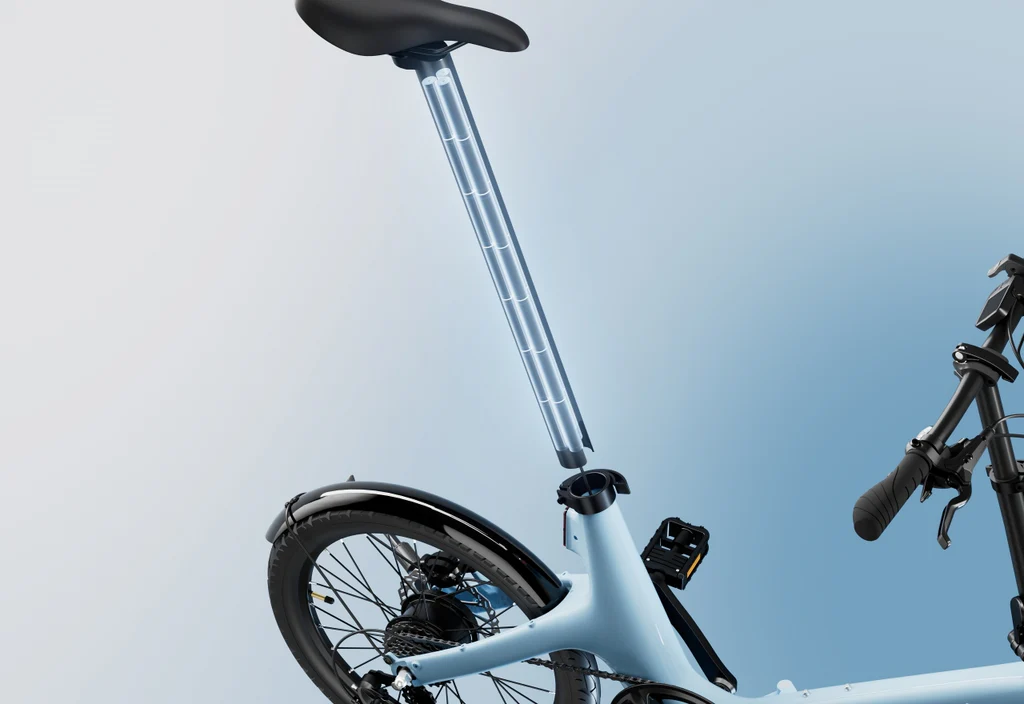

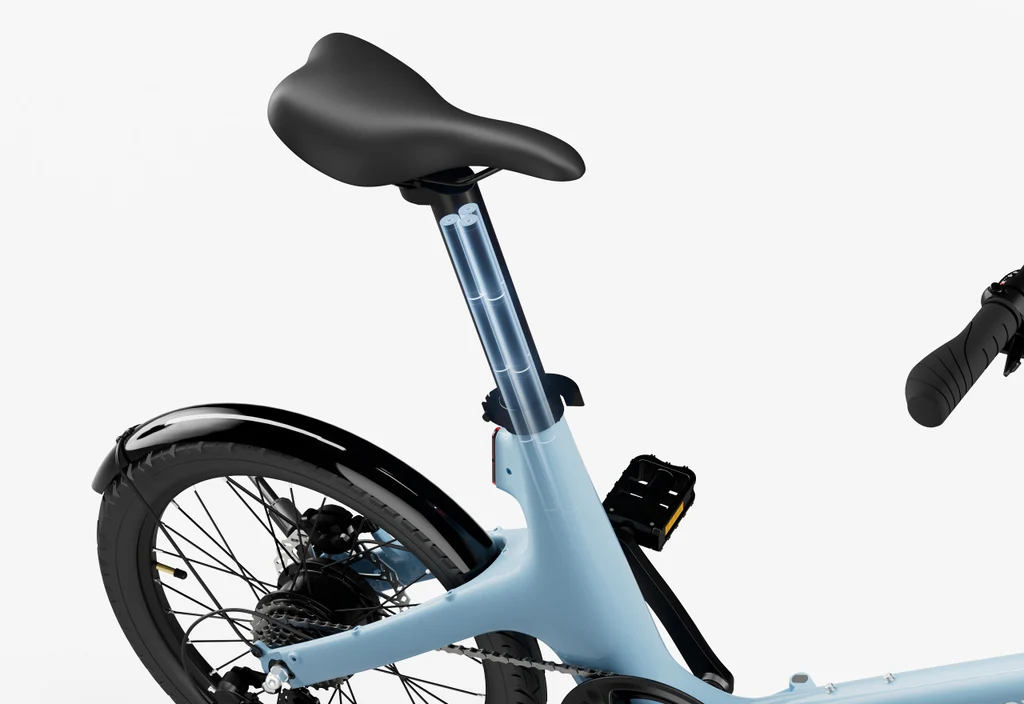

252Wh seat post battery, certified to UL-2271, removable battery

Pedal Assist
4 levels

Charger
3.5hrs fast charger

Display

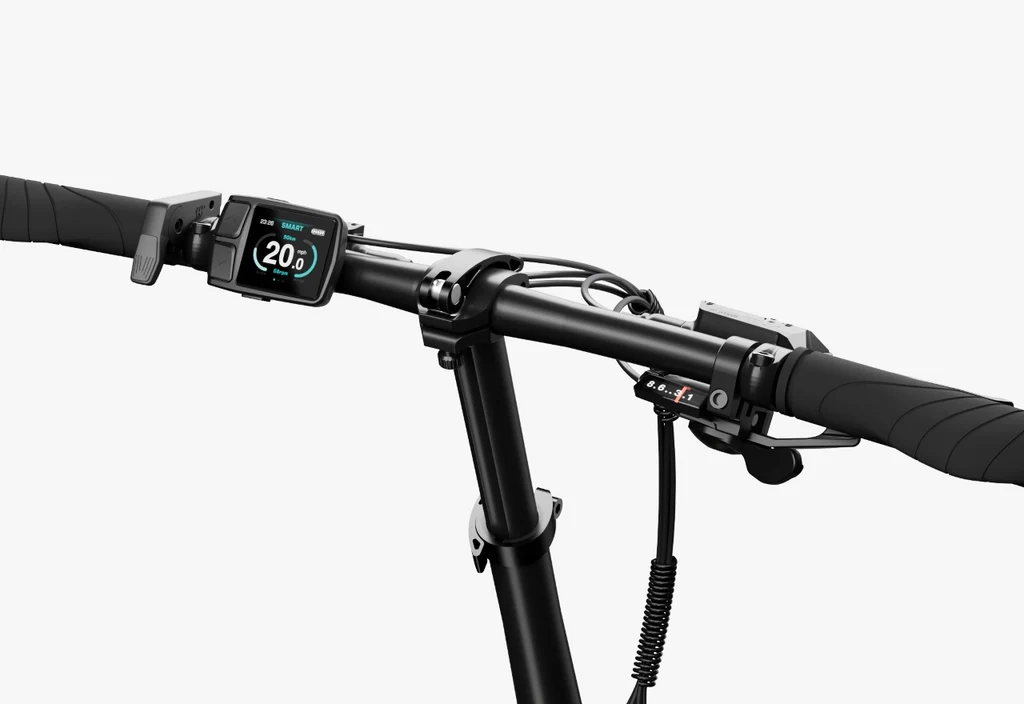

2’’ Color display

Sensors
Torque sensor

Lights
Front: External lights, 60 Lux
Rear: Integrated tail lights

Water Resistance
IP65

Drivetrain

Chainrings
52T

Cassette
14-28T, 7 Speed

Chain
Shimano 7 speed

Rear Derailleur
Shimano Tourney 7-Speed

Shift Lever
7 Speed Trigger
