Urtopia Carbon Fusion Pro E-Bike

Description

Toray® Carbon Fiber

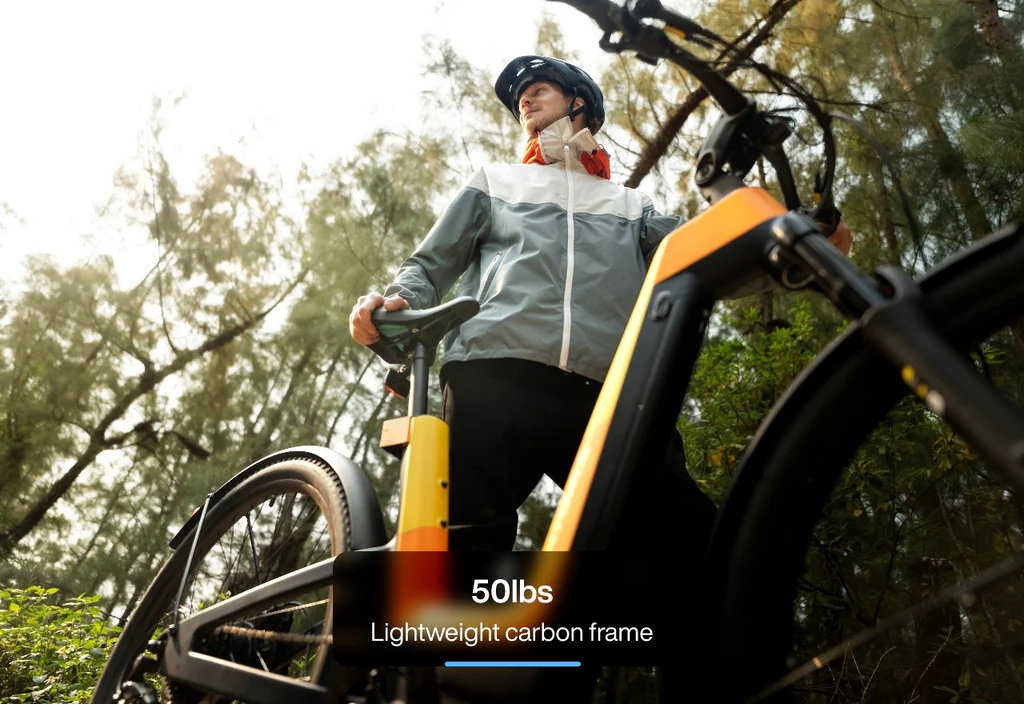

50 lbs Lightweight

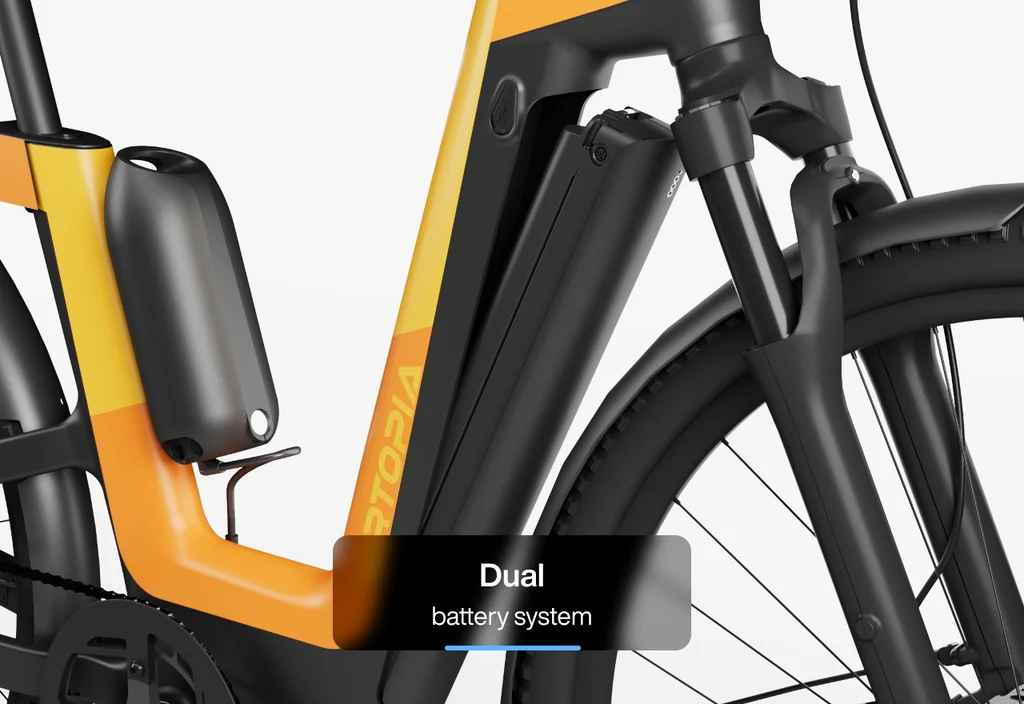

Dual battery system

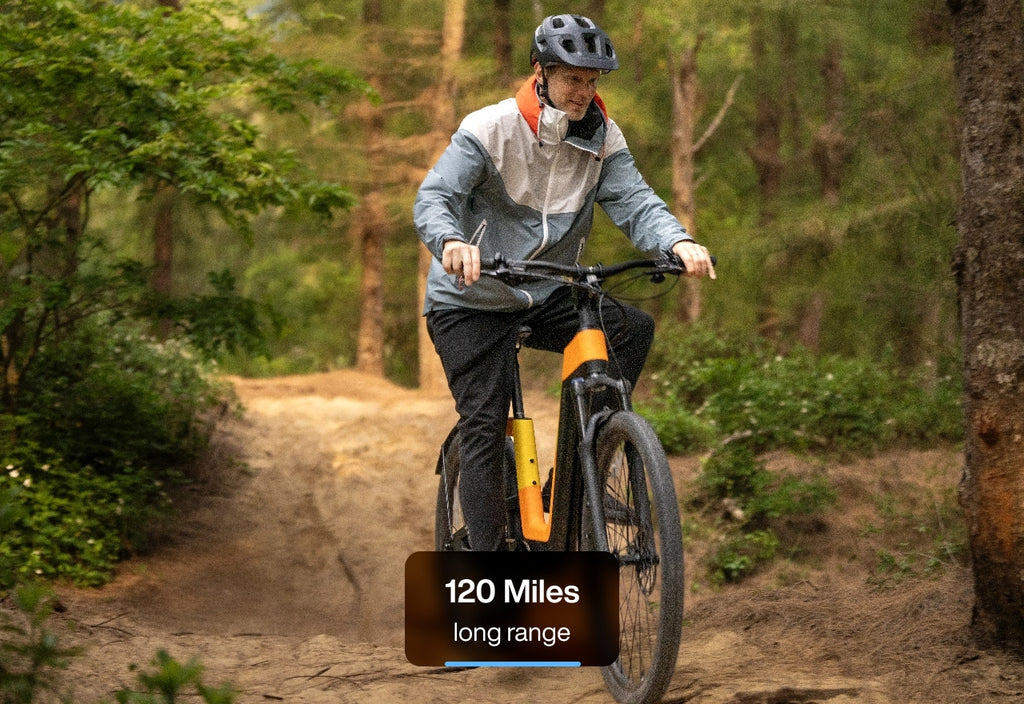

Up to 120 miles

Motor
500W

Payload capacity
330 lbs

Portable battery
Samsung Li-ion

Safety Certified
UL 2849

---

Size Guide

Recommended rider height	5’3’’ – 6’3’’
A. Adjustable seat range	120 mm (5’’)
B. Handlebar grips height	1142 – 1212 mm (45’’ – 48’’)
C. Seat tube length	455 mm (18’’)
D. Wheelbase	1178 mm (46’’)
E. Overall length	1917 mm (76’’)
F. Wheel diameter	741 mm (29’’)
G. Top tube length (effective)	600 mm (24’’)
H. Head tube length	135 mm (5’’)
I. Headset height	90 – 120 mm (4’’ – 5’’)
J. Standover height	470 mm (19’’)

General Info

Model
Carbon Fusion Pro Long range eBike

Net Weight
48lbs w/o acc.

Material
Carbon fiber frame

Range
Up to 75 miles
Extended to 120 miles (Dual battery)
*The 75-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.

Top Speed
20mph by default, 25mph upon unlock

Total Weight Limit
330 lbs

Rider Height
5’3’’ – 6’3’’

Brakes
TEKTRO hydraulic disc brakes with power cut-off sensor

Wheels
Kenda 29’’×2.05’’, puncture-proof tire

Water Resistance
IP65

Ebike System

Class
Class 2 by default
Class 3 upon unlock

Motor

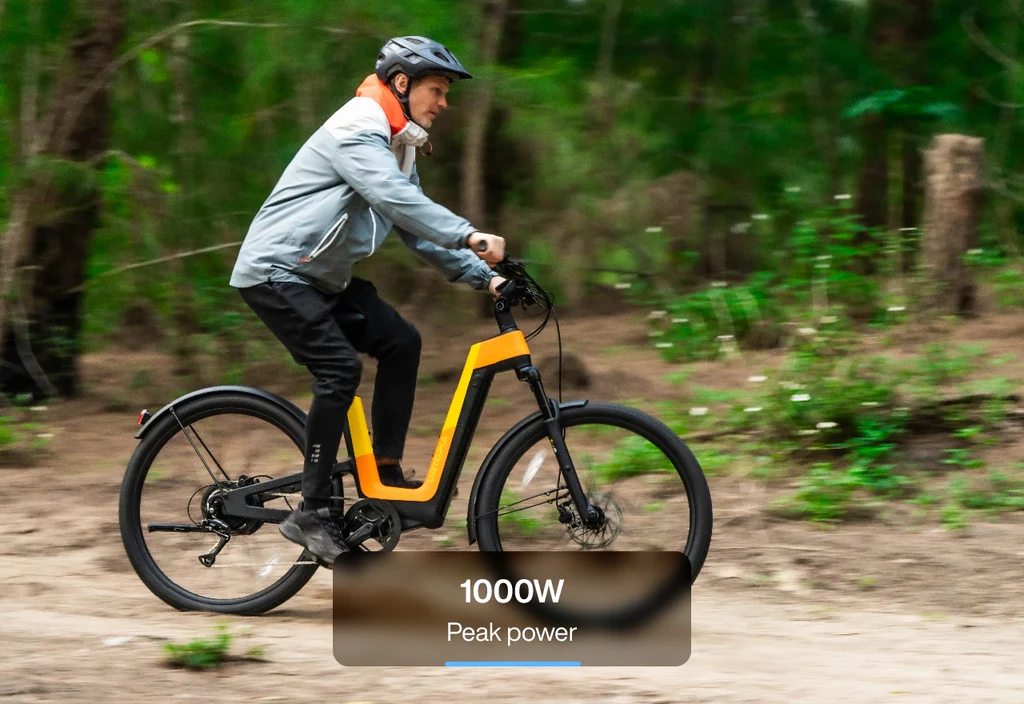

500W (Peak Power 1000W) rear hub, 60Nm

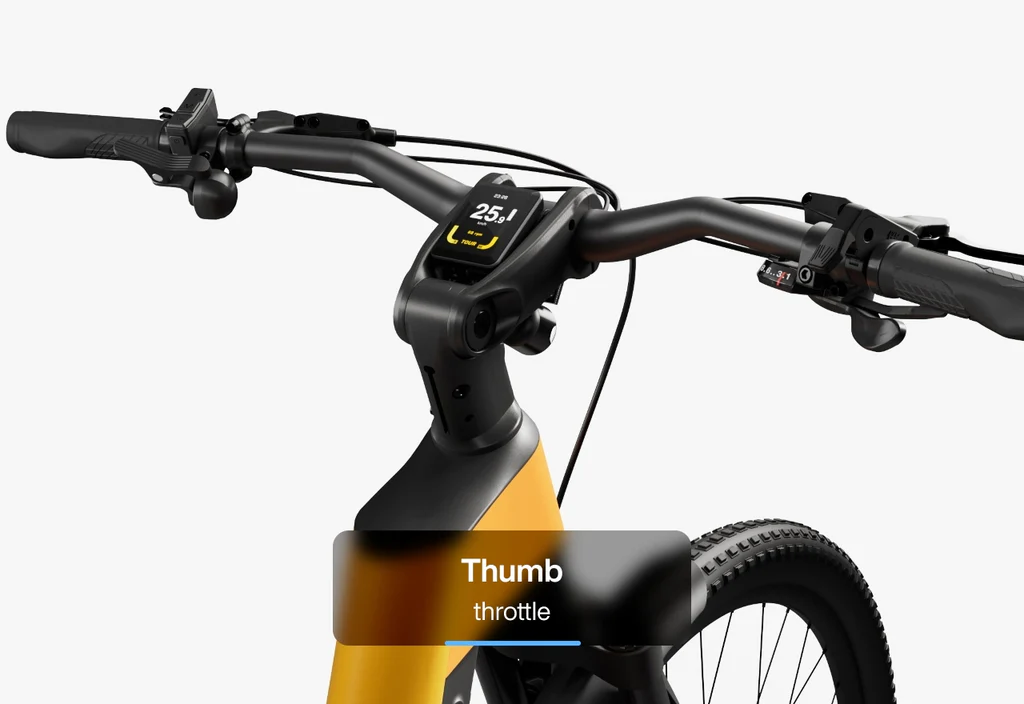

Throttle
Yes (up to 20mph)

Battery
529.2Wh battery, certified to UL-2271, removable battery

Pedal Assist
4 levels

Charger
3.5H fast charger

Sensors
Torque sensor

Lights
Front: External front light, 40 Lux
Rear: StVZO rear light (Not ARES lights)

Display
LCD Color display

Drivetrain

Chainrings
44T

Crankset
Aluminum alloy, 170mm

Cassette
11-40T, 8 Speed

Chain
YBN S8e, Silver

Rear Derailleur
Shimano ACERA 8-Speed

Shift Lever
8 Speed Trigger

Pedals
9/16″ Alloy Platform

Cockpit

Handlebar
Aluminum, extender 0-60° adjustable

Fork

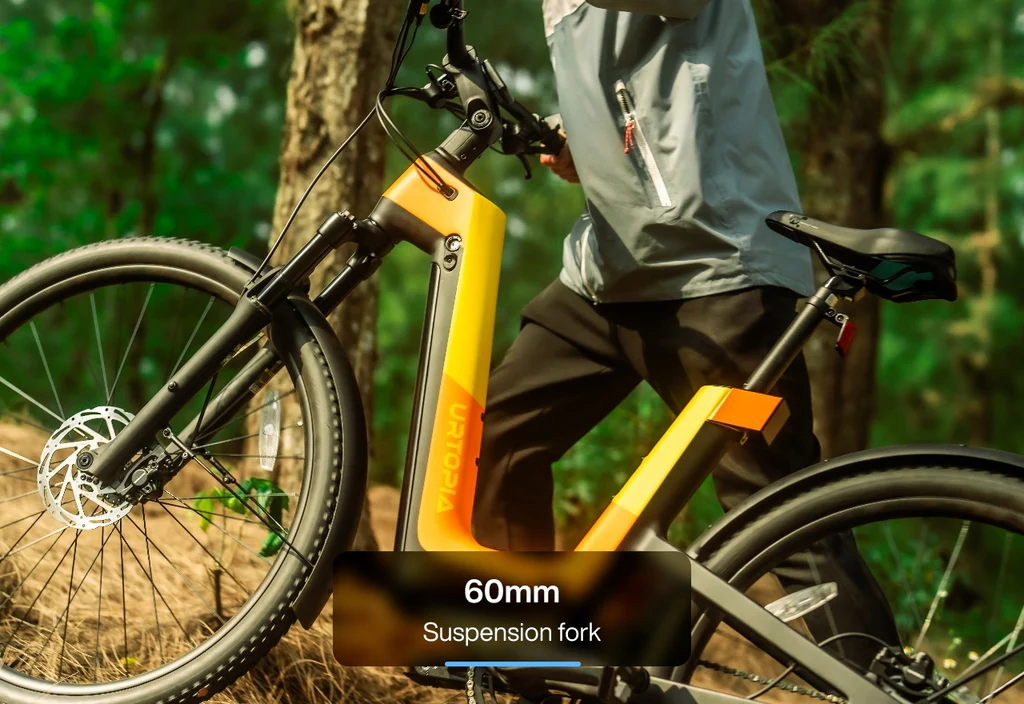

ZOOM 188NS AMS 700C Suspension fork 60mm travel

Grips
Durable ergonomic Grips, lockable

Seat Post
Aluminum Alloy, φ31.6mm
